Big-rig Speed Sensor Location -
Connector Identification |
|
Manual Transmissions ONLY - NOT for Automatic
transmissions.
|
We want you to be
totally satisfied when you get your SafetyPass Pro from the mail
carrier. Anything less, just will not work.
To make it easy, we
ask our valued customers to check their vehicle's speed
sensor connectors before ordering to make sure they match our
installation kit connectors or
one of the adapter cables we have available as seen below.
Simple, Fast,
Plug-N-Play installation is what we're after.
Please compare your
connectors below, then
Order Here
|
We support the
following speed sensor connectors:
1.

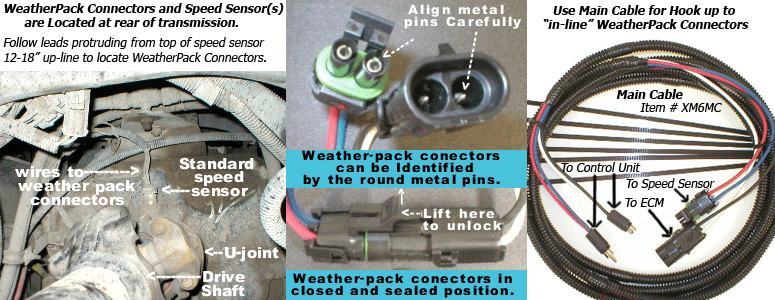

Weather-Pack connectors
Weather-Pack "in-line" connectors are
commonly found on older (pre-2001) trucks, including Peterbilt,
Kenworth, Freightliner, Volvo and others.
The Main Cable, Item# XM6MC is
used for simple plug-in connections to Speed Sensor Connectors or to one of the Adapter Cables. The Main Cable
is also used to interface with the SafetyPass Pro Control Unit. Can
be installed Temporarily or Permanently. (Included with
installation kit).
*Trucks with two sensors or two leads will need the
Weather-Pack Y Adapter
to gain visual feed-back from the speedometer
during device operation
See Catalog.
|
|

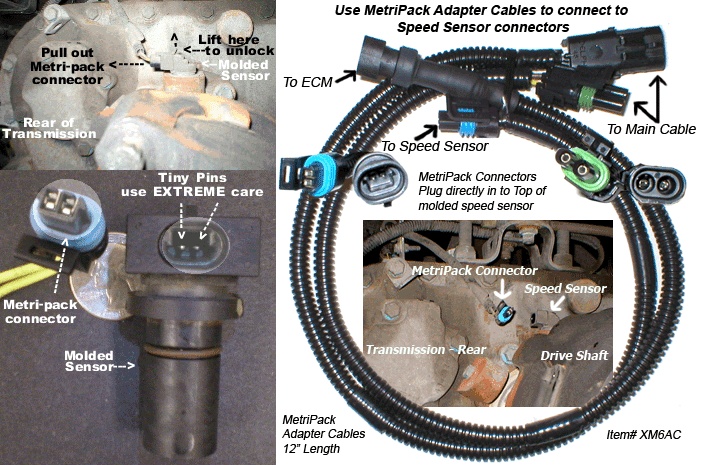

2. Metri-Pack
connectors
Metri-Pack connectors are found
mostly on 2001 and newer trucks
including Peterbilt, Kenworth, Freightliner,
Volvo and others.
These Connectors plug directly in to the top
of molded speed sensors. A few trucks have Weather-Pack connectors
in addition to the Metri-Pack connectors. To hook up to the speed
sensor connectors use the 12" Metri-Pack adapter (included
with the installation kit).
|
|
3. Metri-Pack
280 connectors
Metri-pack 280 connectors have
been found on some 2007 model trucks. These connectors simply
plug into the Speed Sensor Leads, similar to
Weather-Pack connectors and in the same location.
Sold Separately - see
catalog
|
4. Deutsch
connectors
Deutsch Connectors for
International (Navistar) Trucks.
These connectors simply
plug in to the Speed Sensor Leads, similar to
Weather-Pack connectors and in the same location. Use the Deutsch
adapter to hook up to these connectors.
Sold Separately - see
catalog
|
|

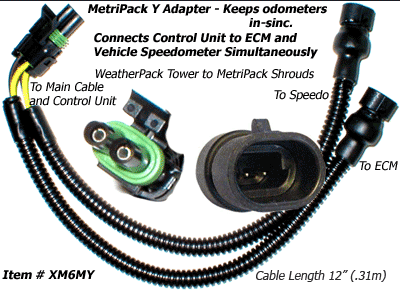

Also Available - Y Adapter Cables - for trucks with 2 speed sensors
or sets of 2 leads - Available in Weather-Pack or Metri-pack styles.
This adapter is 12" long and has 1 Weather-Pack
Tower and 2 Metri-Pack shrouds for simultaneous connection to the
ECM and Speedometer. Keeps mileage in-sinc on the ECM odometer as
well as the speedometer odometer. Enables visual feedback using
the vehicle speedometer to determine device speed.
Sold Separately - See
catalog
|
And... if all else
fails try these...

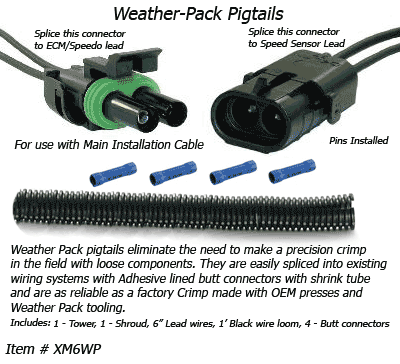

Weather-Pack
Pigtails
If your connectors are
not listed here, but you have a compatible engine and
transmission, you can splice in a set of Weather-Pack pigtails
for a simple weather-tight connection. These connectors will
connect to the Main Cable for easy plug-in hook up.
Weather-Pack
Pigtails - 1 Set - includes Tower, Shroud with metal pins
installed and butt connectors.
Sold Separately - See
catalog
|
